AXICON 15200 / 15500 BARCODE VERIFIER

Axicon是领先于世界前列的条形码检测供应商。总公司设于英国，公司专注于条码检测仪器，数码条码，条码标签。我们的产品销往全球，在世界各地都有合作供应商。

公司在条形码领域已有三十多年的历史，Axicon品牌就是条形码质量的保障，条形码的印刷不精确会导致条形码无法识别、扫描延迟以及额外的损失

Axicon 15500

Linear and 2D barcode verifier

Features

95mm x 70mm

field of view

Three different

operating positions

ISO/IEC compliant

verification

USB powered

Data content checker

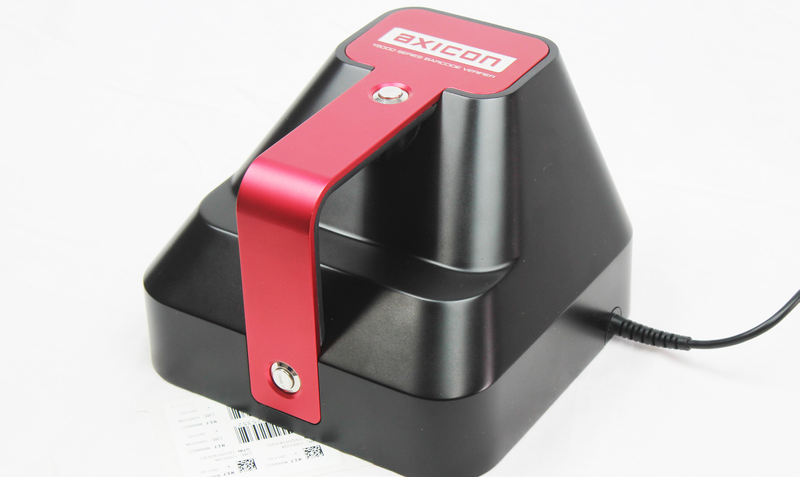

The Axicon 15500 barcode verifier is designed to read both linear and two-

dimensional matrix barcodes simultaneously. All the symbols seen in its field

of view are verified individually, and the user simply selects each barcode in

turn to see the specific results.

The field of view - 95 mm by 70 mm - is the world’s largest for a handheld 2D

barcode verifier. Linear and 2D barcodes are verified in accordance with the

appropriate ISO/IEC standard, with linear barcodes being sampled ten times

from top to bottom.

Data Matrix, GS1 DataMatrix, QR Code, GS1 QR Code, EAN, UPC, ITF-14, GS1

Databar and GS1-128 symbols can all be verified. The verifier is designed

to be used in three different positions so that even barcodes on awkwardly

shaped objects can be easily read. It is powered solely via its USB connection

to a PC or laptop, and the software runs on any Microsoft supported version

of Windows, from Windows 7 onwards.

The record of each verification includes the image of all the codes in the

field of view, as well as the reports for each barcode. These verification files

can be consecutively numbered or date and time stamped if required for

traceability auditing processes. The verifier may be configured to comply

with the FDA regulation 21 CFR Part 11.

About Axicon

Axicon Auto ID is a world leader in barcode

verification,   having   developed   and

manufactured our own range of verifiers

since 1989. Axicon barcode verifiers are

used to measure the quality of linear and

matrix barcodes, on all levels of product

packaging.

Software Specifications

Symbologies verified EAN-8, EAN-13, UPC-A, UPC-E, ITF-14, GS1-128, GS1 DataMatrix, GS1 QR Code, Data Matrix, GS1

Databar, QR Code, Code 39, Code 93, Code 128, Codabar, ITF, MSI Plessey.

Analysis performed on

linear symbologies

Full ISO/IEC 15416 parameter analysis, average bar gain, check digit validation, data length, nominal

bar width (x-dimension), symbol structure, quiet zone validation, wide to narrow ratio.

Analysis performed on

2D symbologies

Full ISO/IEC 15415 parameter analysis (parameters vary according to the symbology). Nominal bar

width (x-dimension), average module gain.

Data analysis Data content checker for Application Identifiers with GS1-128, GS1 DataBar, GS1 DataMatrix and GS1

QR Codes.

Logging Scan saving and loading - stores complete details of scan file data. Allows for remote diagnostics and

also for increased traceability. Autosaving of scans for audit trail purposes.

Multi-language English, French, Spanish, Danish, Dutch, German, Slovenian. Other languages on request

Hardware Specifications

Dimensions 205 x 195 x 141 mm (8”x 7.6” x 5.5”) - Maximum image size 95mm x 70mm (3.75” x 2.75”)

Weight 1.5 Kg (53 oz)

Construction Plastic housing, CMOS sensor, LED illumination

Power consumption Current draw 360mA – supplied from USB host.

Aperture reference

numbers

05, 06, 08, 10, 16 and 20. The software automatically identifies the symbology and its nominal bar

width (x-dimension) and adjusts the aperture size to comply with the symbology specifications and

relevant ISO/IEC standard.

Wavelength of light 660 nm

All trademarks are acknowledged as belonging to their respective companies. As Axicon continually improves its products, the specifications

and features explained in this document are subject to change without notice.

General Information

Report generation A report can be produced via the in-built report generator, and saved or printed. The report generator

can create reports in .pdf, .html, .txt, .csv or other formats (Append facilities are available for any

format which supports this). The report generator is customisable via scripts and templates so

reports can be tailored to individual requirements.

System requirements PC running any currently supported version of Windows - USB 2.0

Environmental Operating temperature: 10° to 40°C - Storage temperature: -20° to 70°C

Relative humidity: 25% to 80% @ 40°C non-condensing

Regulatory approvals CE certified, RoHS compliant. Meets ISO/IEC 15415, ISO/IEC15416, ISO/IEC 15426-1 and ISO/IEC

15426-2 standards. Has all the features necessary to meet the requirements of 21 CFR part 11.

Warranty Two years parts and labour – return to bench.
